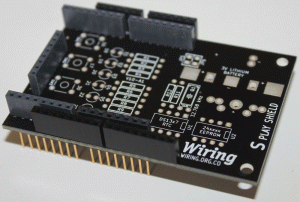

Wiring S Play Shield Board - DESCRIPTION

This is a Wiring S Play Shield accessory board. You can pair it with a Wiring S board and use Arduino shields. Also, you can, optionally, populate the through hole components for additional fun with the Wiring S board. There are sockets and traces for pushbutton switches, LEDs, a 24xxxx I2C EEPROM, and a DS13x7 RTC and backup battery.

FEATURES

• On board traces and pads for:
  • 4 pushbutton switches w/pullups
  • 6 LEDs w/series resistors
  • 1 24xxxx I2C EEPROM
  • 1 DS13x7 RTC w/backup battery
• pads for Arduino shield board attachment
• There are several connector configurations available
  • Basic Headers - includes 5 1x8 pin standard male headers. They can be inserted from the bottom and soldered from the top into the five Wiring positions, or using only four of the 1x8, trim two of them to 1x6 and insert and solder into Arduino positions.
  • Stackable Wiring Headers only - includes 5 1x8 stackable connectors, inserted from top and soldered on the bottom
  • Stackable Wiring Headers with Arduino Socket headers - same as above, additionally includes Arduino socket headers, 2 1x8 and 2 1x6. Inserted from top and soldered on bottom

REFERENCES

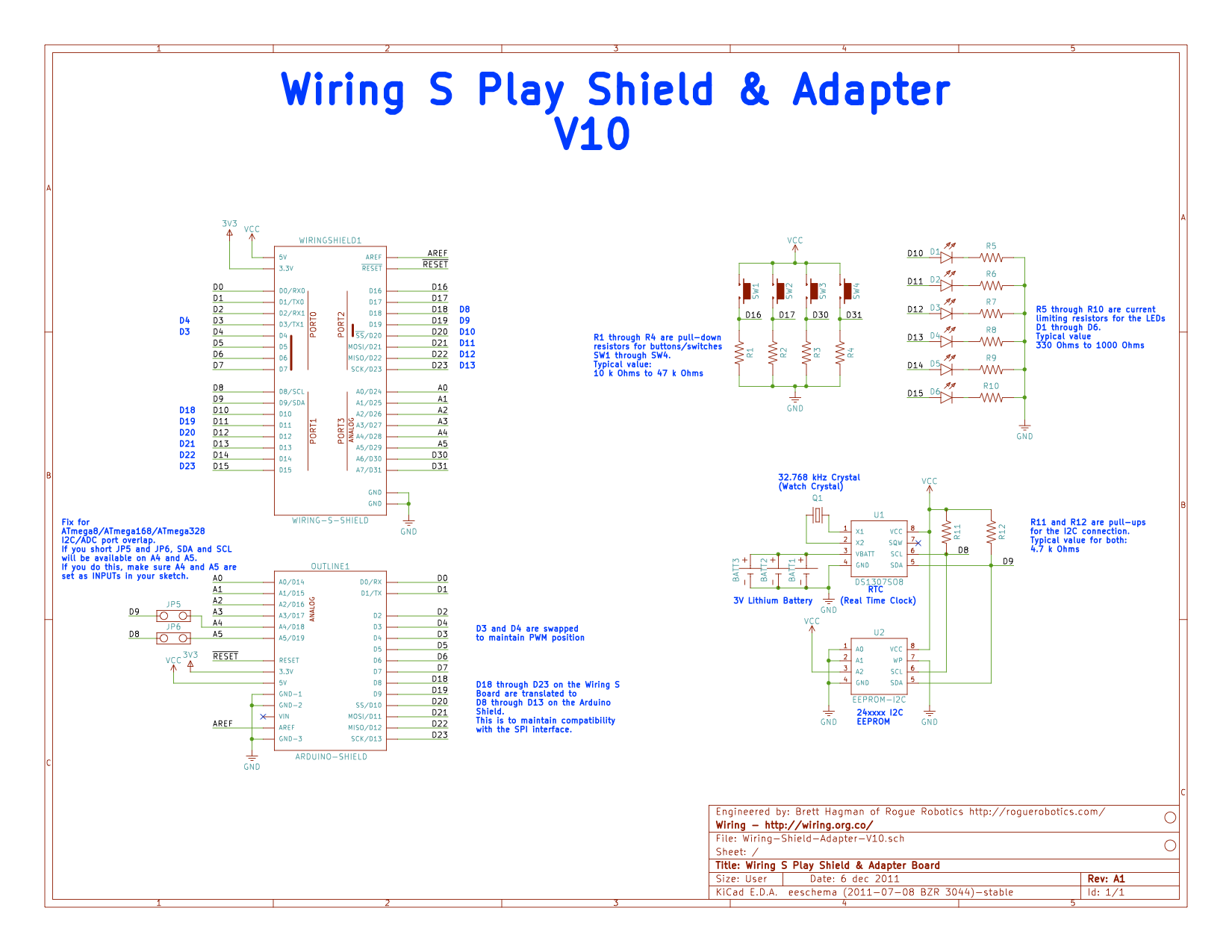

• Board schematic is available here.
• You can download the Wiring S Play Shield schematic and board files from http://wiring.googlecode.com/files/Wiring-S-Play-Shield-Adapter-V10-KiCAD.zip This is an archive of the Wiring S Play Shield Schematics and Board files, including the schematics symbol cache file, for KiCAD. It also includes the KiCAD project file.

Bare PCB with wiring buss headers, five(5) 1x8 stacking headers.

Bare PCB with wiring buss headers, five(5) 1x8 stacking headers, Arduino socket headers (2 1x6, 2 1x8), 4 N.O. pushbutton switches, 6 3mm LEDs (2 each, red, green, yellow), 1 24LC512 (64 KBytes) I2C EEPROM, 1 DS1307 I2C RTC w/backup battery, 2 8 pin DIP sockets, and appropriate resistors for all of the above.

Wiring S board, Bare Play Shield PCB with wiring buss headers, five(5) 1x8 stacking headers.

Wiring S board, complete Play Shield Kit with all parts listed above.
