Wulfden Freeduino BB and Sanguino Bootloader Burners

An Arduino(R) compatible processor board with ISP connector and ZIF socket to facilitate easy burning of Bootloaders and Sketchs to Arduino compatible AVR chips

• Fully assembled and tested
• BB Burner accepts an Atmel ISP device with a 6 pin ISP connector. (6 to 10 pin optional adapter available)
• Sanguino Burner accepts an Atmel ISP device with a 6 or 10 pin ISP connector.
• user must supply his own ISP unit

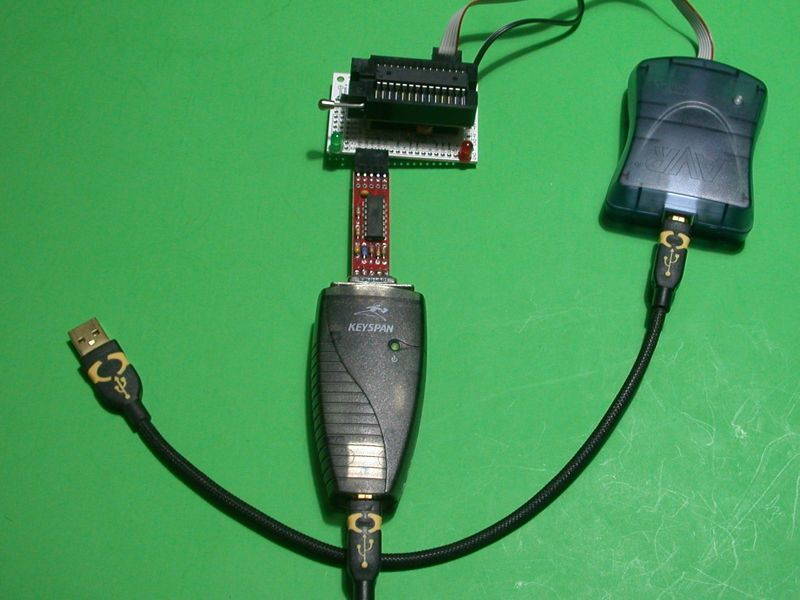

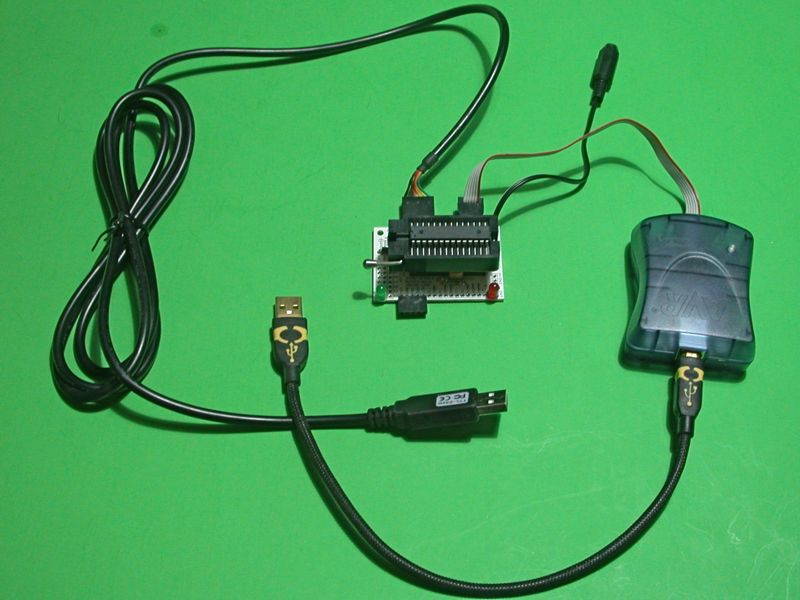

• Can be powered and sketches downloaded via FTDI TTL-232R cable
• the Red LED on Digital 13 (Digita l 0 on Sanguino) acts as a progress indicator for burning and sketch downloading

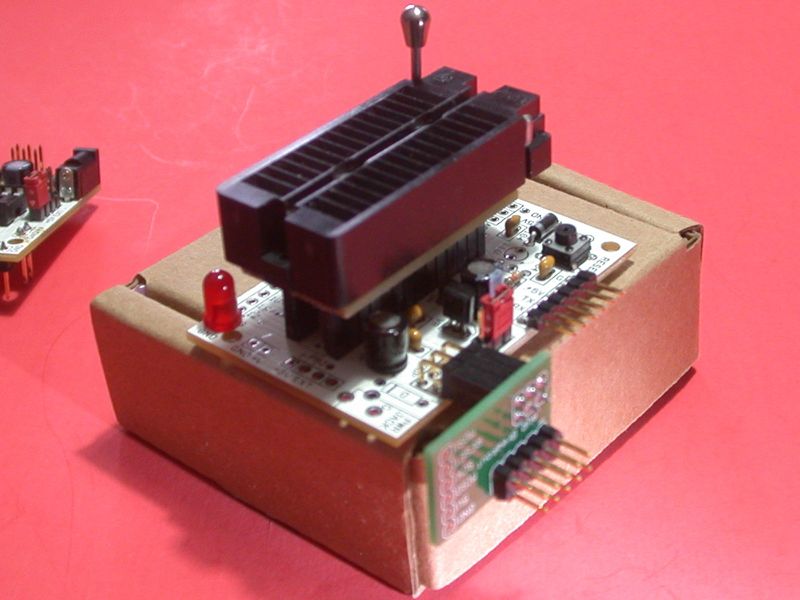

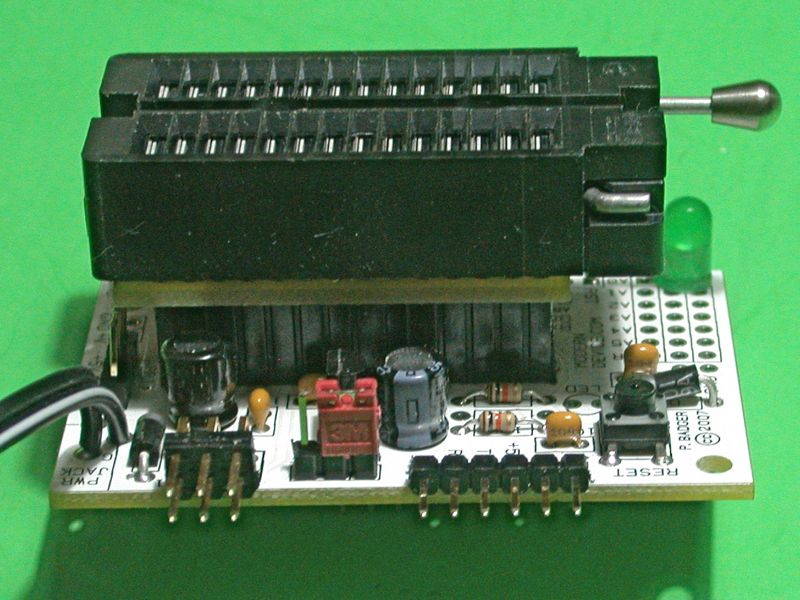

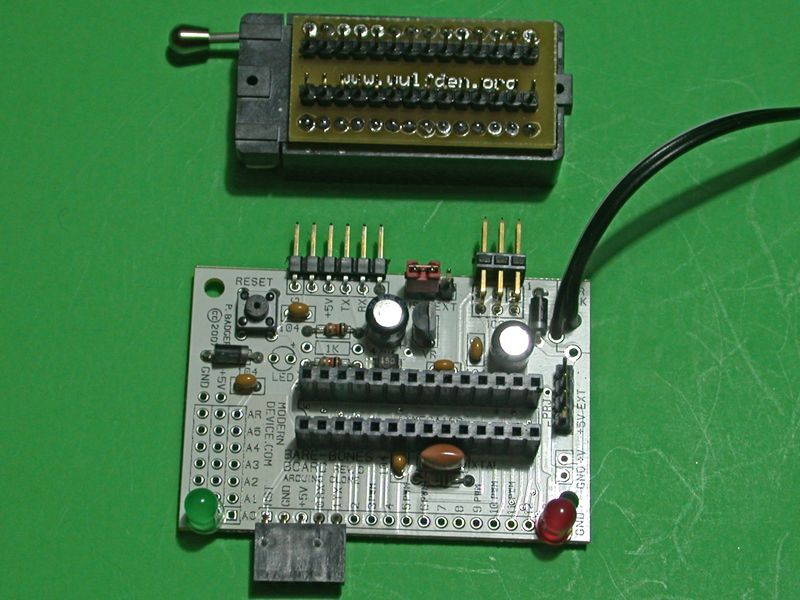

This is a completely assembled and tested unit, based on the Rev D BBB. It comes with either a TexTool or Aries 28 pin ZIF socket, power and progress LED and a 2.1mm coaxial power connector. The price includes Priority Mail (US only) postage

BB Burner

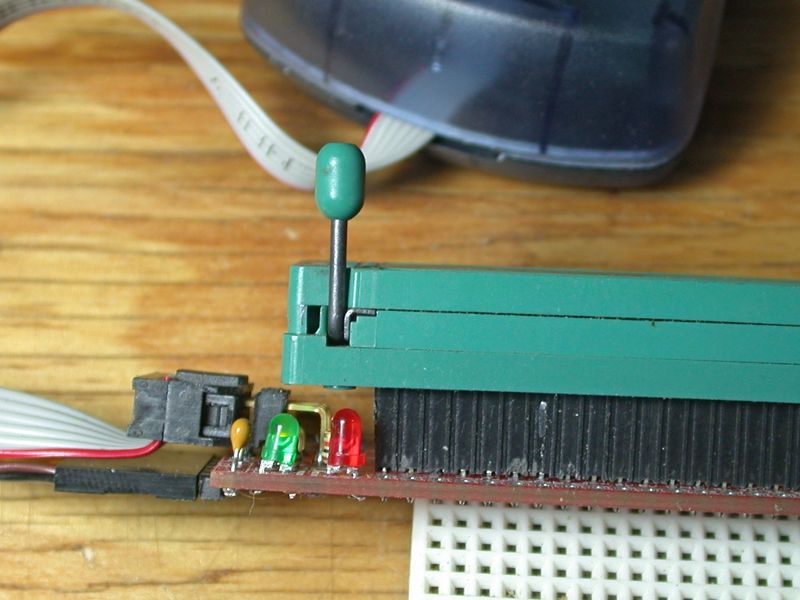

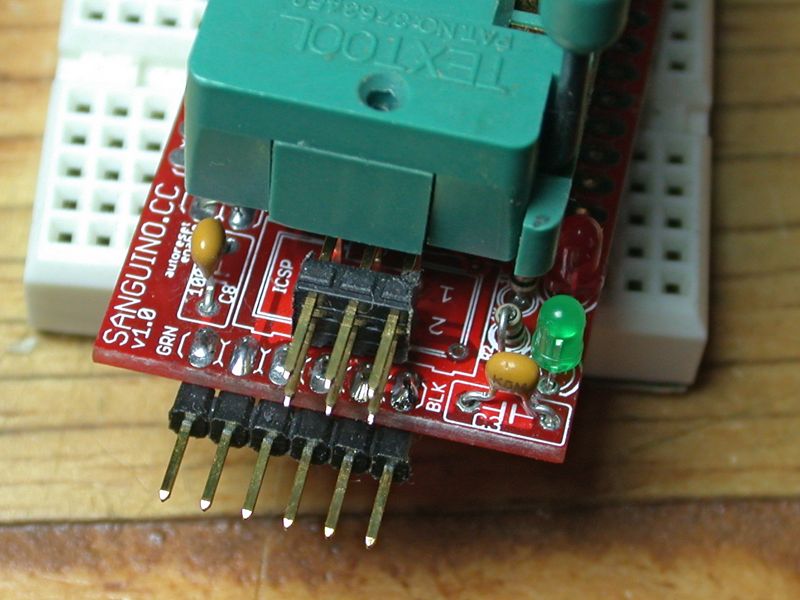

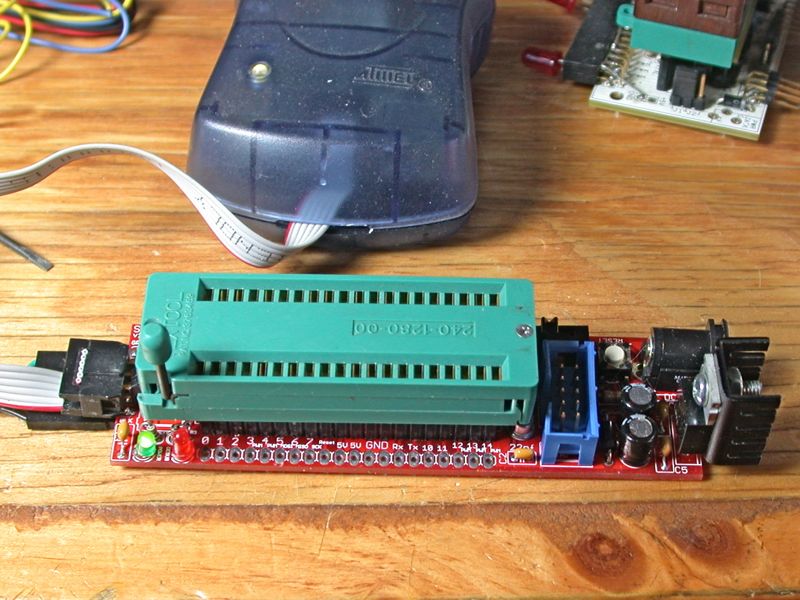

This is a completely assembled and tested unit, based on the Rev 1.0 Sanguio. It comes with either a TexTool or Aries 40 pin ZIF socket, power and progress LEDs, and a 2.1mm coaxial power connector. The price includes Priority Mail (US only) postage

SangBurner

The following items are priced based as add-ons to the BBBurner set. Orders for just the add-ons without an BBBurner will be returned!

small board with 2x3 socket header and 2x5 male pin headers to use a 10 pin ISP unit with this Burner. If this is ordered with Burner unit, the 2x3 ISP connector will be mounted upright.

BUB

A USB Serial Programming Adapter. Based on the same chip, the BUB's electrical and software interface is identical to the familiar FTDI TTL-232 cable. Requires USB mini-B cable. Can be readily used for many other projects besides the Sanguino. For detailed info see my Programming Adapter page.

All done ordering? Be sure to check out shipping surcharges
