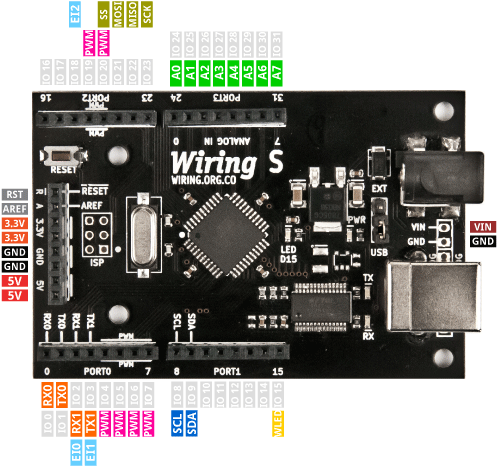

Wiring S Board - DESCRIPTION

Wiring is an open source electronics prototyping platform with it's own Wiring language, built upon Processing. Wiring is more than hardware and software. The documentation was thoughtfully created with designers and artists in mind. As an established electronics medium for art and design, Wiring enables designers, artists, and electronics enthusiasts explore the electronic arts, tangible media, electronics and computer programming education, and prototyping with electronics.

The Wiring S Board, along with the Wiring development environment, can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, Isadora, VVVV, MaxMSP, Pd, C++, Java, Openframeworks, and many more) via USB. The open-source development environment for Wiring can be downloaded for free (currently for Mac OS X, Windows, and Linux).

FEATURES

• 1 Amp 7805 5 Volt voltage regulator
• FTDI USB to serial converter
• USB A jack
• 2.1 mm power jack - 7.5 to 12 V DC
• Battery input - 7.0 to 12 V DC
• MCU: Atmel ATmega644P
• 16 MHz crystal oscillator
• Total flash memory: 65536 bytes (64 KB)
• Available flash memory: 63488 bytes (62 KB)
• SRAM: 4096 bytes (4 KB)
• EEPROM: 2048 bytes (2 KB)
• 2 Hardware serial ports
• 1 Hardware I2C port
• 8 Analog to digital inputs
• 6 Hardware PWM pins

REFERENCES

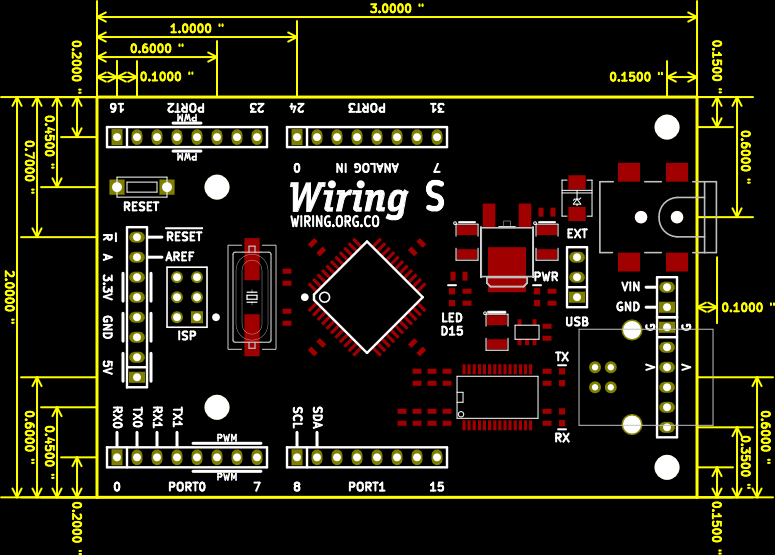

• Board layout with dimensions is available here.

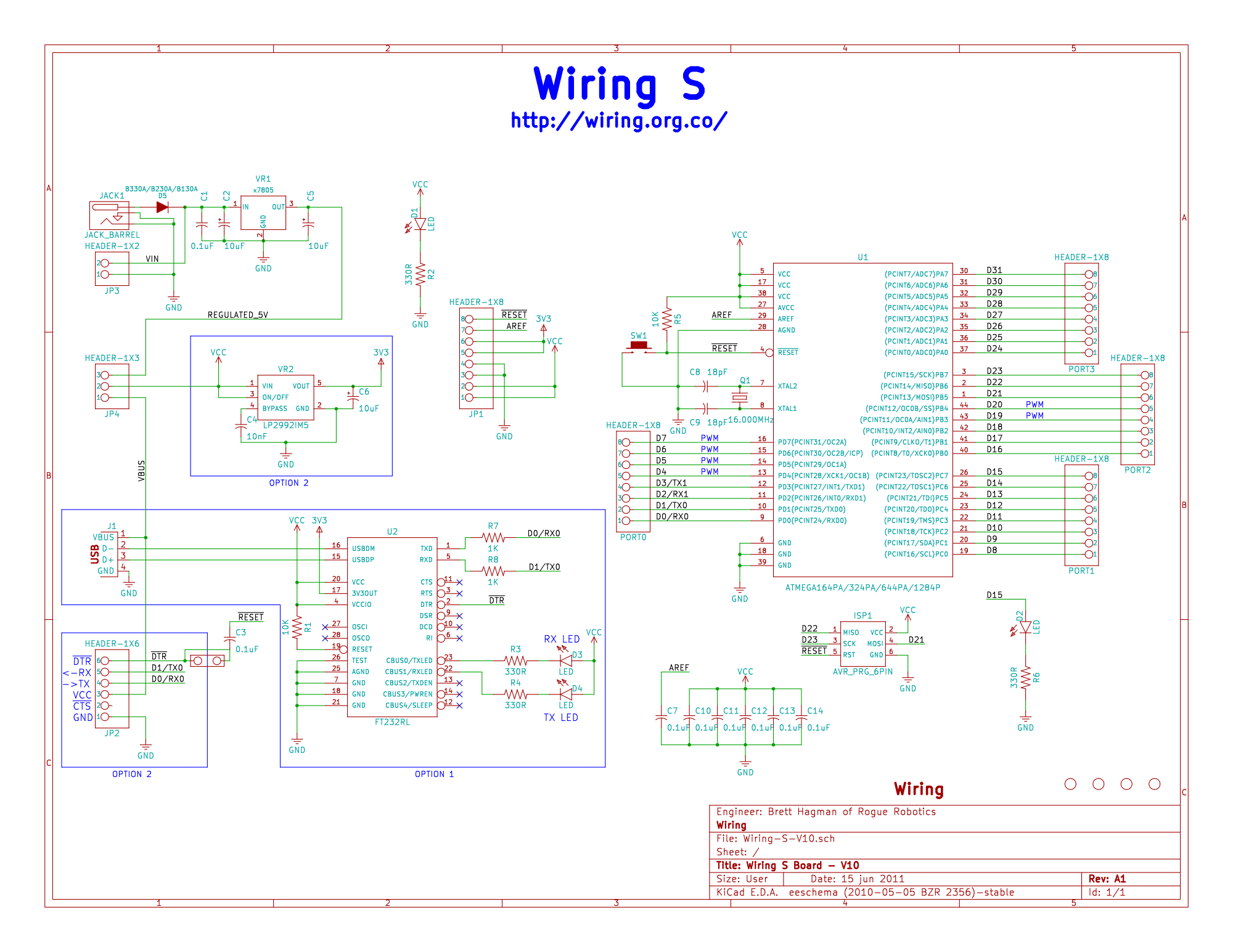

• Board schematic is available here.
• You can download the Wiring S schematic and board files from http://wiring.googlecode.com/files/Wiring-S-V10.zip. This is an archive of the Wiring S Schematics and Board files, including the schematics symbol cache file, for KiCAD. It also includes the KiCAD project file.

The board comes fully assembled, tested, and pre-loaded with the Wiring serial bootloader.

This is a Wiring S Play Shield accessory board. You can pair it with a Wiring S board and use Arduino shields. Also, you can, optionally, populate the through hole components for additional fun with the Wiring S board. There are sockets and traces for pushbutton switches, LEDs, a 24xxxx I2C EEPROM, and a DS13x7 RTC and backup battery.

For more details and orders

9 vdc/300 ma AC Power Supply - this a like-new "pull" from never used equipment. It was designed to be plugged in 24/7. Has standard 18 ga wire with standard coaxial connector. (Radio Shack Type "M" - 2.1 x 5.5 mm) Perfect match for the Wiring S board. This price applies only when ordered with a Wiring board or bundle.
