PH Anderson LCD chips are Microchip PIC 16F648A and have no markings. So to ease the issue, I mark them using "White-Out" (ignore perfect round white dots they are reflections).

  • LCD117/2400 (new version) - two white marks on end opposite the notch
  • LCD118/2400 (old version) - one white mark on end opposite the notch
  • LCD117/9600 - no marks
  • LCD117/19200 - on white mark on the notch end



Board -- Board and Parts -- Board and Chip
(Click on any image to enlarge)
Item Description/Picture Qty=1 Qty=3 Qty=5 Qty=10

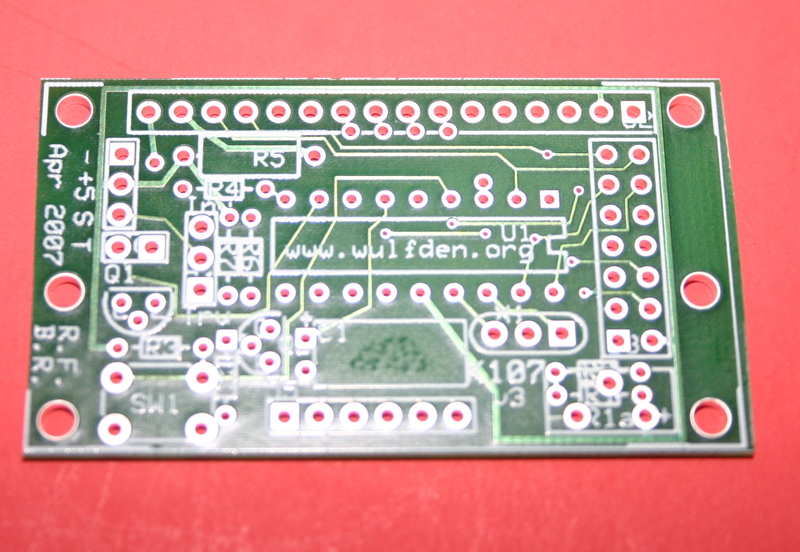

K107 (Rev4)
pcb only
$5
$15
$20
$40

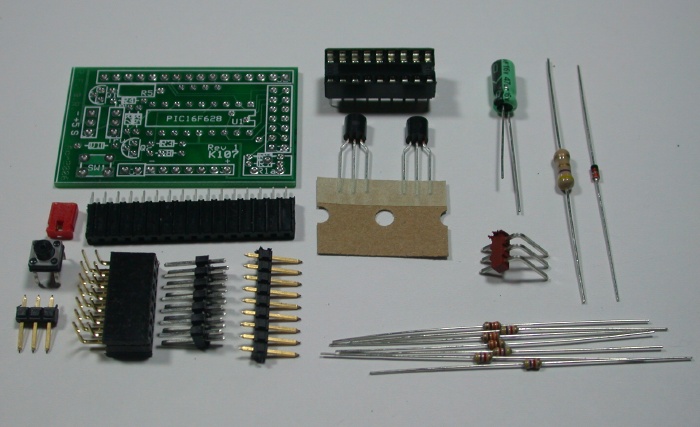

K107 (Rev4)
pcb & parts only
(no chip)
$10
$30
$45
$90

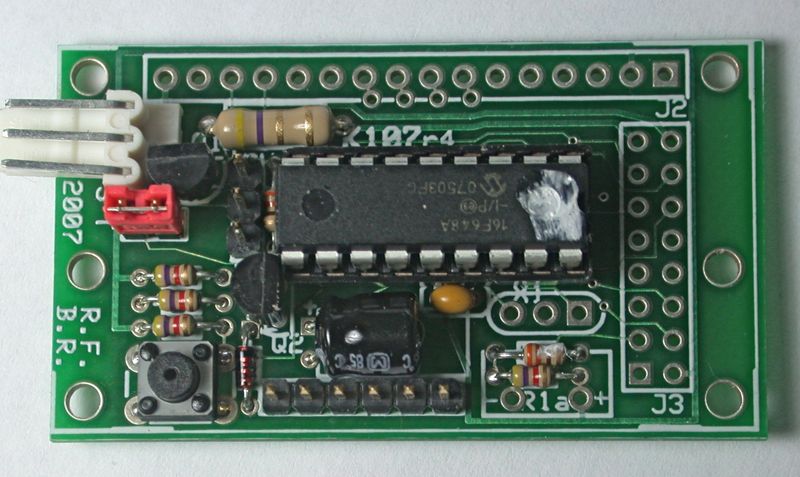

Board and Chip
K107 (Rev4) PCB & LCD117 chip(9600 baud)

   -recommended for general use-
$10
$30
$45
$90
K107 (Rev4) pcb & LCD117 chip (19200 baud)

   -recommended for use with Arduino and Propeller-
$10
$30
$45
$90
K107 (Rev4) pcb and LCD117 chip (4800 baud)

   -direct connect to a GPS
$10
$30
$45
$90
K107 (Rev4) pcb and LCD117 chip (2400 baud)

   -recommended for use with PICAXE-
$10
$30
$45
$90

Complete Kits - contains the K107 PCBoard, the Anderson chip, and all the parts you need to completely populate the K107 PCB; male and female 1x16 and 2x8 pin headers which will let you connect to 1x10, 1x14, 1x16, 2x7, and 2x8 displays. Both TTL and RS232 signal level input. The kit also incldes a 3 wire servo/lcd cable with female Molex KK connectors.

Item Qty=1 Qty=3 Qty=5 Qty=10
Complete Kit (9600 baud)

   -recommended for general use-
$15
$43
$70
$140
Complete Kit (19200 baud)

   -recommended for Arduino and Propeller use-
$15
$43
$70
$140
Complete Kit (4800 baud)

   - suggest direct connect to GPS
$15
$43
$70
$140
Complete Kit (2400 baud)

   -recommended for PICAXE use-
$15
$43
$70
$140
K107RA - FFC/FPC Ribbon Adapter

This board will provide an adaptation for displays making use of 14/16 conductor "Flat Flex" (FFC/FPC) cables. It maybe be plugged into the 1x16 socket header on the K107 (or any other board for that matter, even a breadboard) or soldered directly to the row of 16 holes without the socket header.

Kit consists of the K107RA board, a 1x16 pin header and a 14 or 16 contact FFC/FPC through hole socket that has to be soldered surface style to the edges of both sides of the pcb. Assembly time less than 5 minutes.

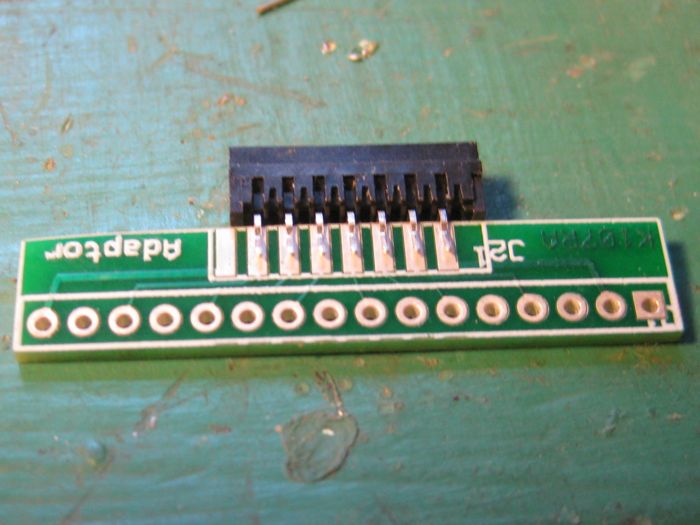

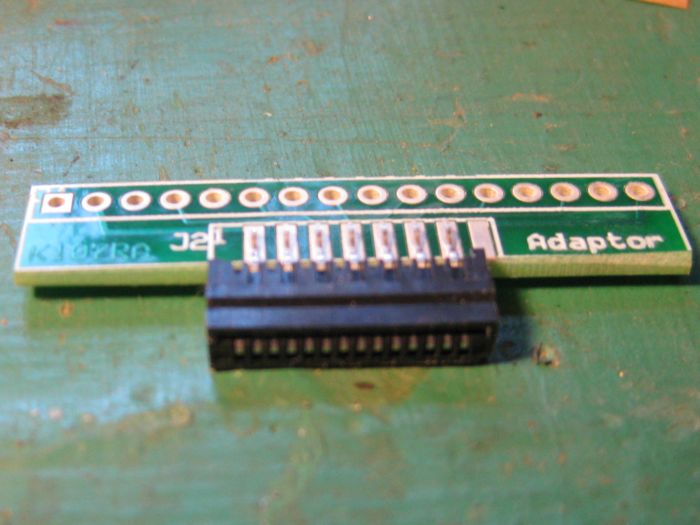

Pictures above show the 14 pin connector using the pins 1 through 14 (the first 7 pads on the top and the bottom of the PCB. The 16 pin connector use all 8 on the top and the bottom.) Remember, the square pad of the .100" header row is Pin 1.

1 K107RA (14 pin)

$3

1 K107RA (16 pin)

$3

2 K107RAs (14 pin)

$6

2 K107RAs (16 pin)

$6

3 K107RAs (14 pin)

$9

3 K107RAs (16 pin)

$9
