  • This web page was last updated on Wed, 2014 Mar 26 @ 1501 hours
  • Questions about this page? Contact us by email.

  • This page has K107 serial to parallel controller kits bundled with various sizes/shapes of character based liquid crystal displays (LCDs).

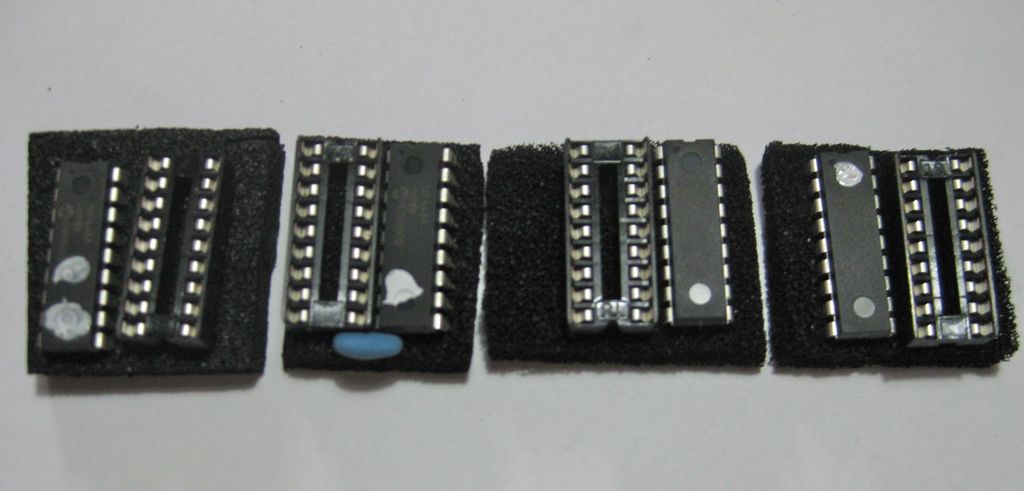

PH Anderson LCD chips are Microchip PIC 16F1827 and have no markings. So to ease the issue, I mark them using "White-Out" (ignore perfect round white dots they are reflections).

  • LCD117/2400 (new version) - two white marks on end opposite the notch
  • LCD118/2400 (old version) - one white mark on end opposite the notch
  • LCD117/9600 - no marks
  • LCD117/19200 - on white mark on the notch end



7777 777777
Full Kit/Serial Cable/Display Bundles
(Click on any image to enlarge)
Item Description

LCD117
9600

LCD117
19200

LCD117
2400

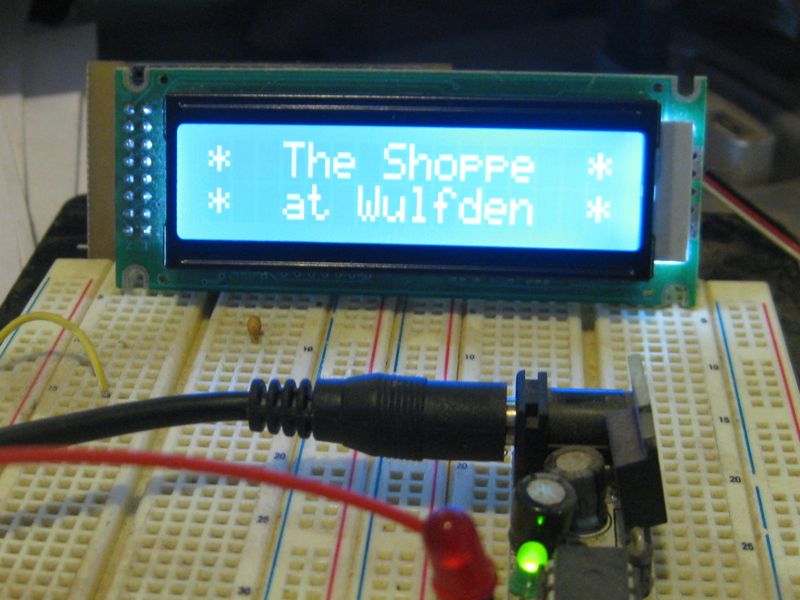

2x16 Blue/White Display Bundle

Full K107 Kit ... new full size, LED backlight, very high contrast 2x16 display, .

$25
$25
$25

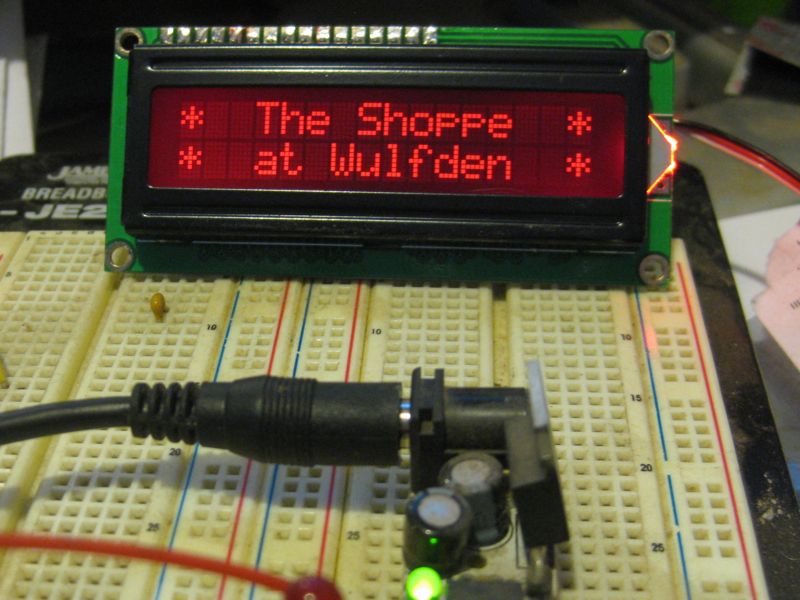

2x16 Red Display Bundle

Full K107 Kit ... new full size, LED backlight, very high contrast 2x16 display, .

$25
$25
$25

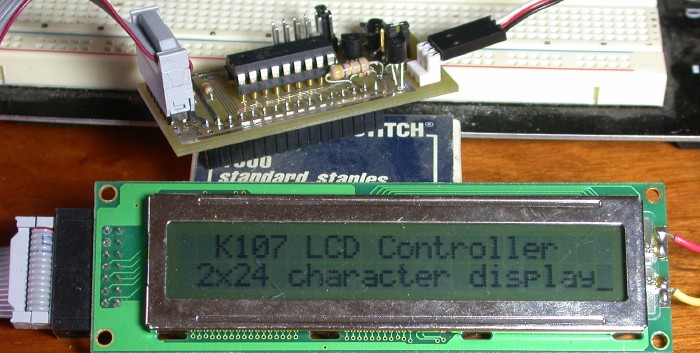

2x24 Display Bundle

Full K107 Kit (board, chip, parts, and cable) bundled with a used, like-new non-backlit 2x24 display

$22
$22
$22

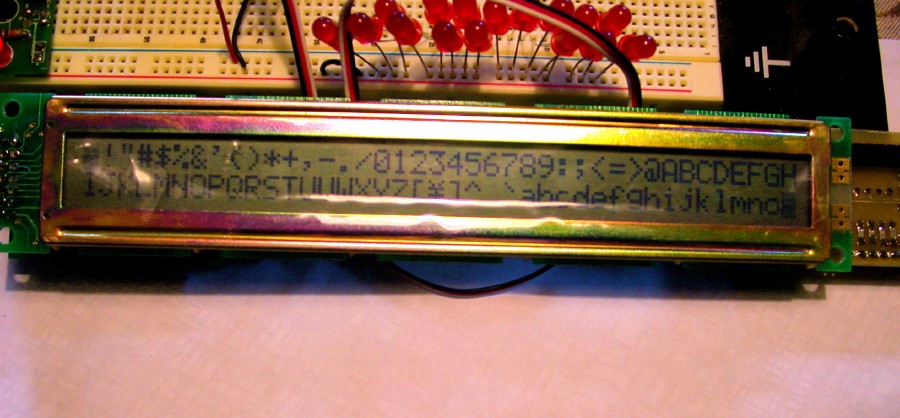

2x40 Display Bundle

Full K107 Kit (board, chip, parts, and cable) bundled with a new non-backlit 2x40 display

$23
$23
$23

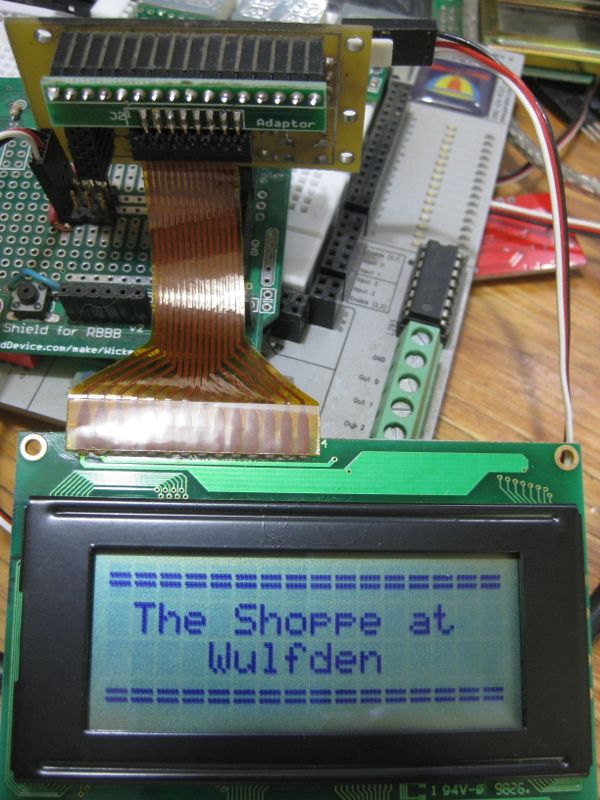

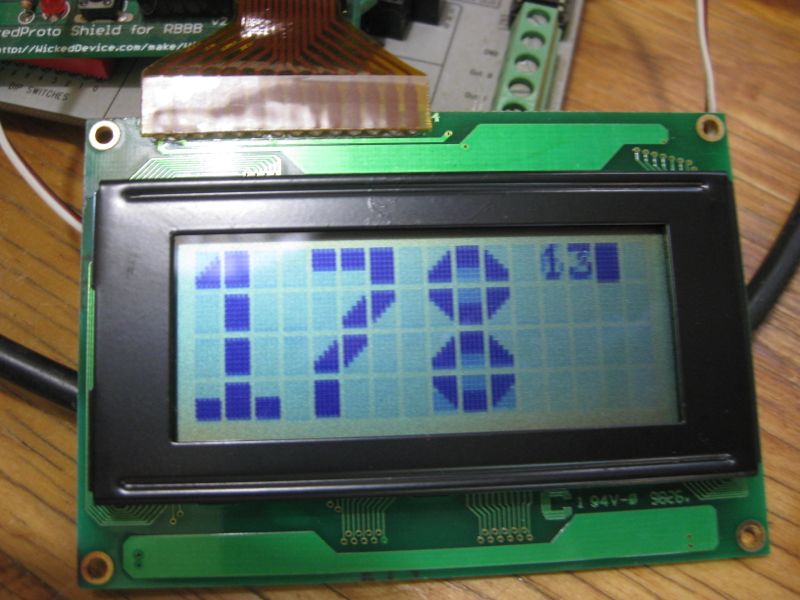

> 4x16 non-Backlit Display Bundle

This offering is a complete K107 Kit (board, chip, parts, and cable) bundled with a like-new, very high contrast, Blue letters on gray background 4x16 non-backlit display. Display is a "pull" from never used equipment. It has a 14 conductor flat flex ribbon connector (FFC) and the bundle comes with a Wulfden K107RA adapter with a 14 pin FFC connector. Thus it will connect using a 1x14/1x16 straight pin header (supplied with kit) .

$26
$26
$26

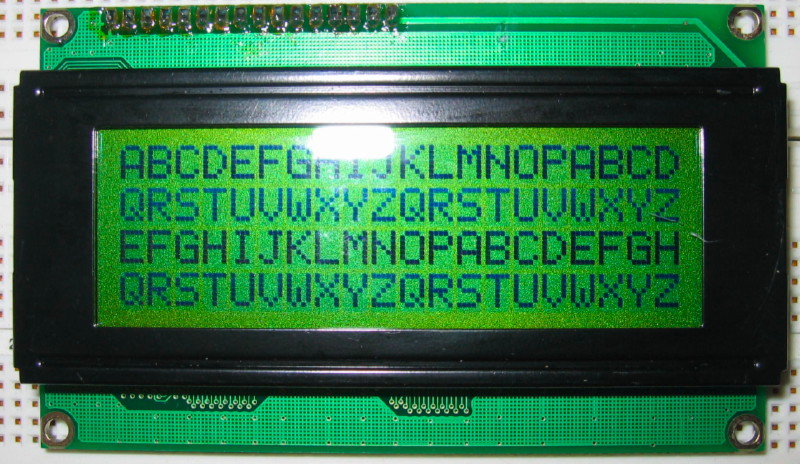

4x20 Backlit Display Bundle

Full K107 Kit (board, chip, parts, and cable) bundled with a new, high contrast, Dark Gray letters on yellow green background 4x20 LED Backlit display. It will mount using a 1x16 straight pin header (supplied with kit) .

$32
$32
$32

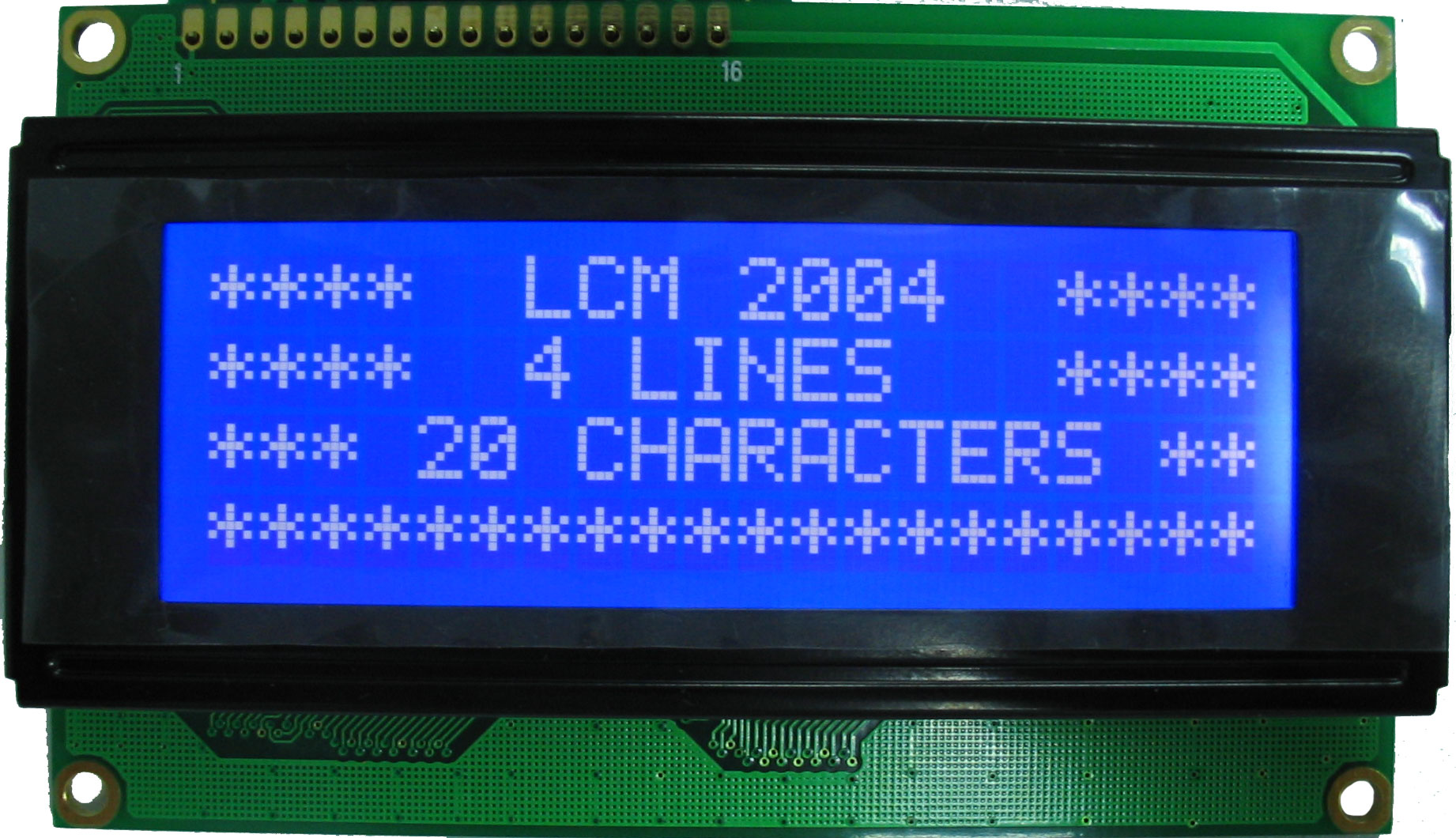

4x20 Backlit Display Bundle

This offering is a complete K107 Kit (board, chip, parts, and cable) bundled with a new, very high contrast, White letters on Blue background 4x20 LED Backlit display. It will mount using a 1x16 straight pin header (supplied with kit) .

$32
$32
$32

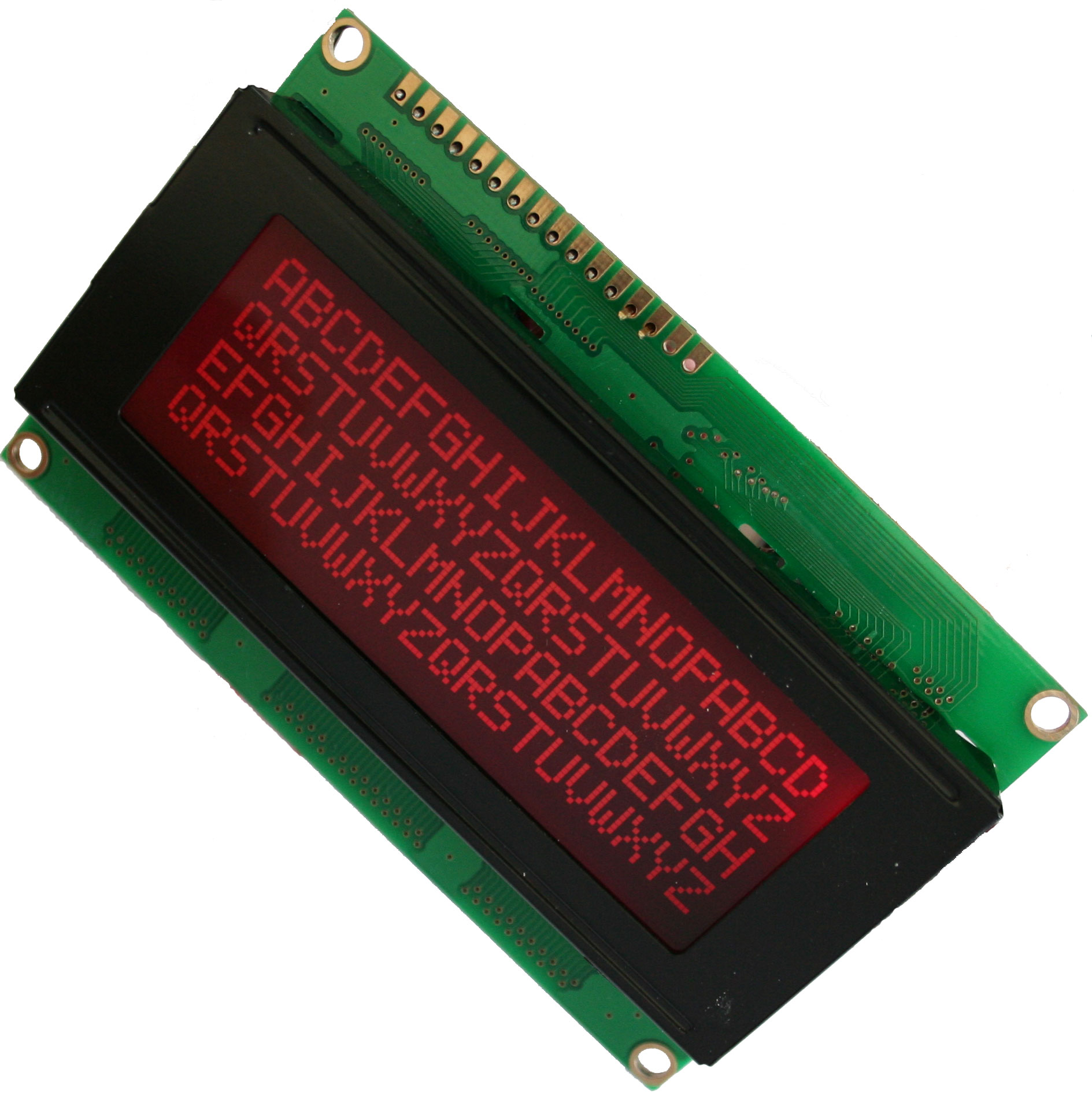

4x20 Backlit Display Bundle

This offering is a complete K107 Kit (board, chip, parts, and cable) bundled with a new, very high contrast, Red letters on Black background 4x20 LED Backlit display. It will mount using a 1x16 straight pin header (supplied with kit) .

$34
$34
$34
